Frequently Asked Questions

1. How do I operate my Mitsubishi Heavy Industries Eco Touch control?

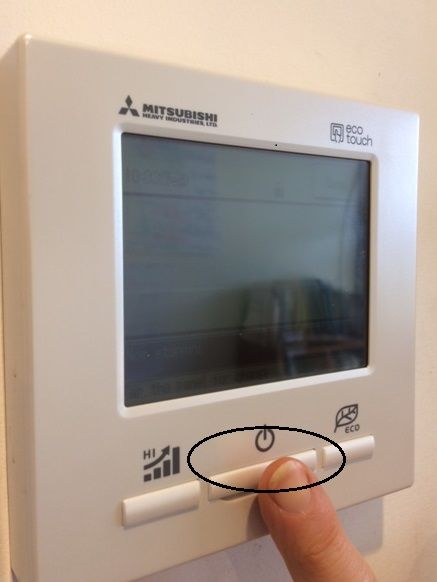

Step 1. With control in off position press on/off button to turn on.

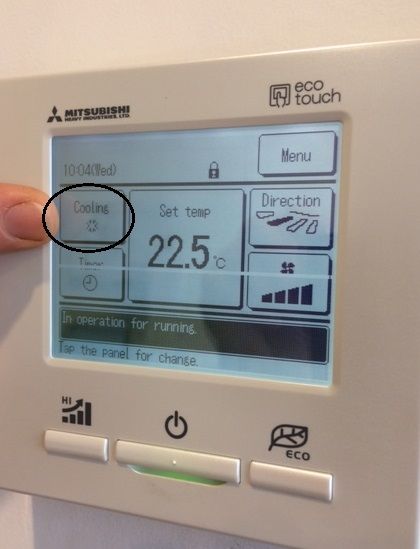

Step 2. With system on press mode selection on screen, cooling, dry, fan or heating.

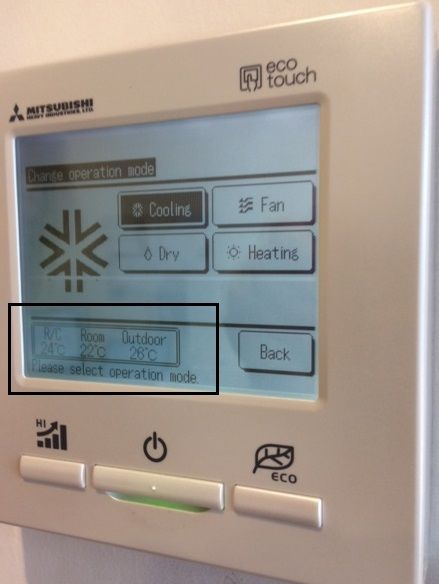

Step 3. When selecting a mode and temperature, the system requires 1.5 degrees different between the remote control and set temperature to operate.

Please note:

R/C= remote control

Room= temperature

Outdoor= temperature

The system requires 1.5 degrees difference between the R/C and set temperature to operate.

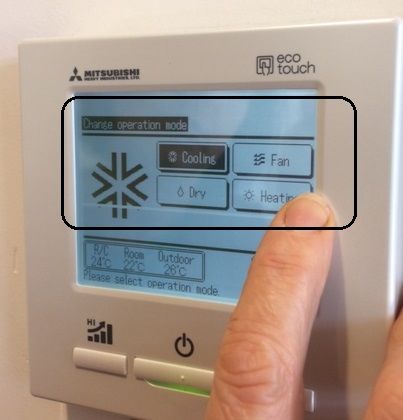

Step 4. Select mode.

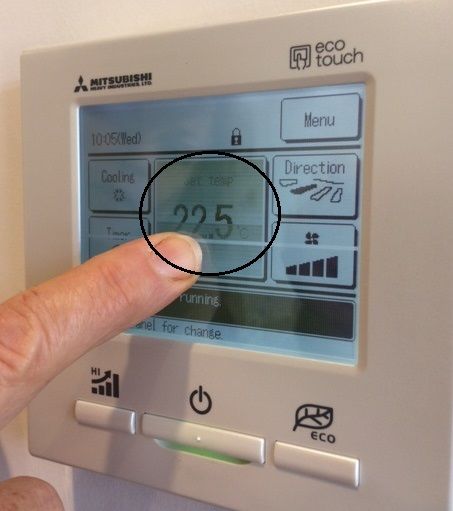

Step 5. Select desired temperature.

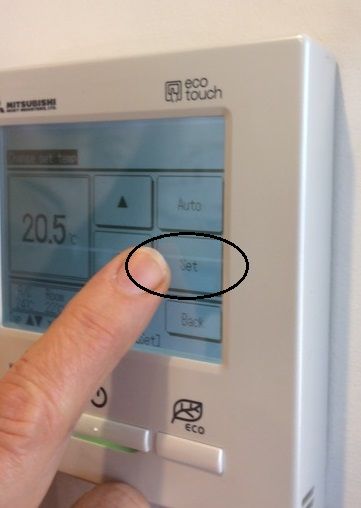

Step 6. After selecting the desired temperature press ‘set’.

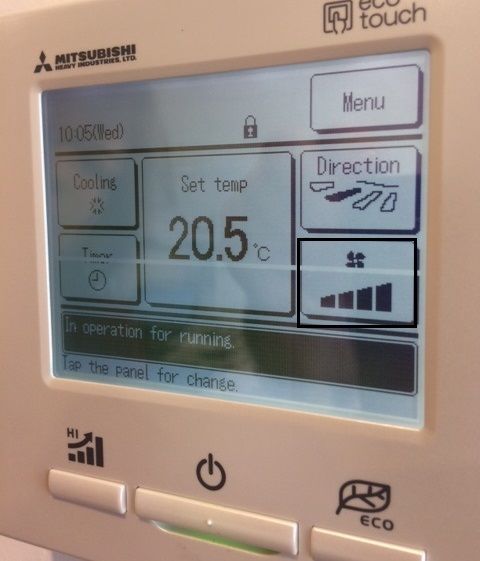

Step 7. Control is now in cooling mode, 20.5 degrees and high fan speed.

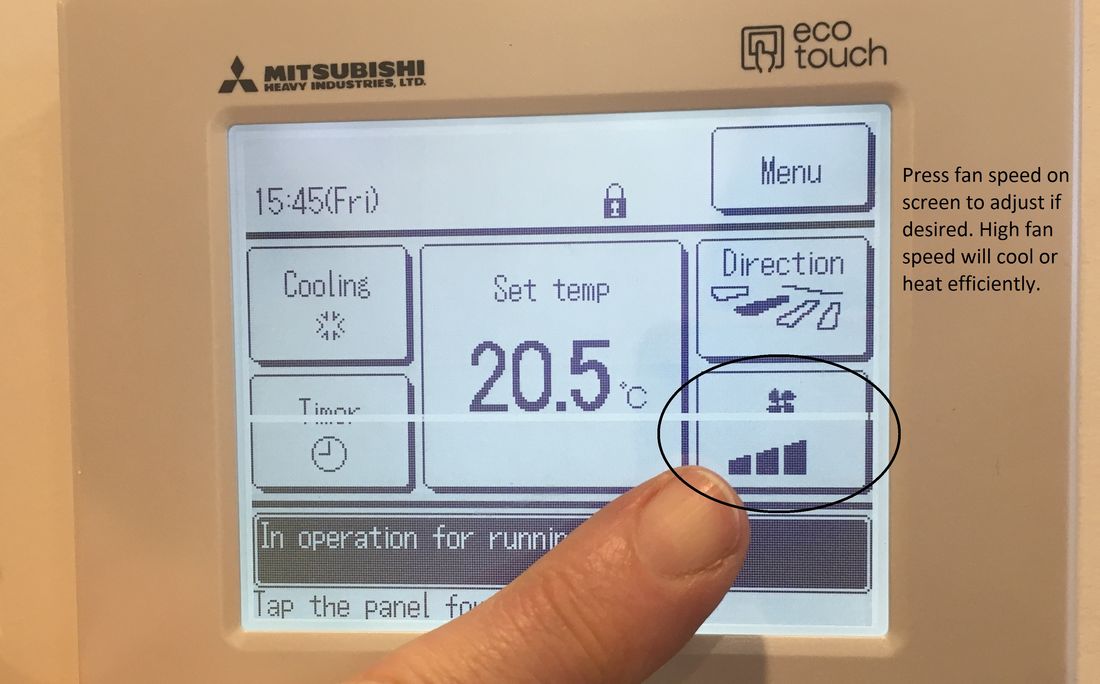

Step 8. Adjusting fan speed.

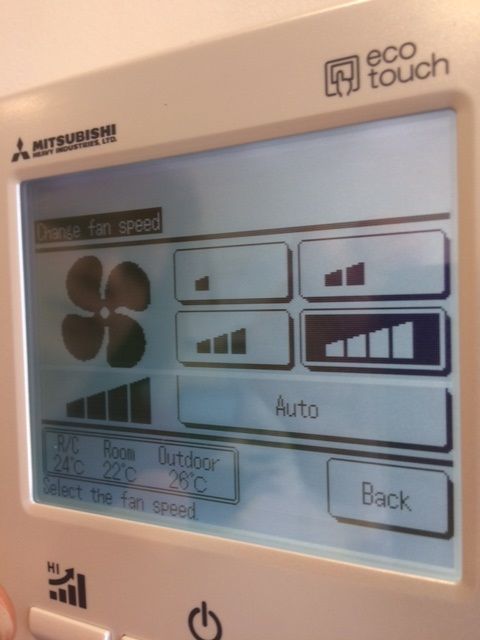

Step 9. Fan set on high fan speed.
